開口帶 & 接合帶︱OPEN & JOINTED BELTS

  1. PU同步皮帶︱POLYURETHANE TIMING BELTS
  2. 開口帶 & 接合帶︱OPEN & JOINTED BELTS
齒形 PROFILE︱INCH type

齒形 PROFILE︱INCH type

MXL,XL,L,H,XH
INCH TYPE
/
PU STANDARD
/
PU PAZ
/
PU PAR
/
  • INCH TYPE

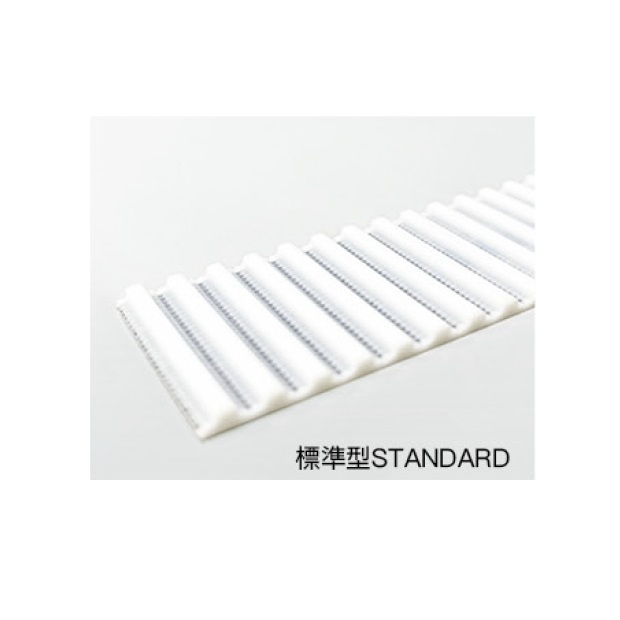

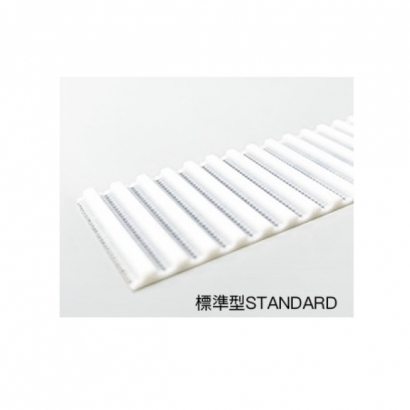

  • PU STANDARD

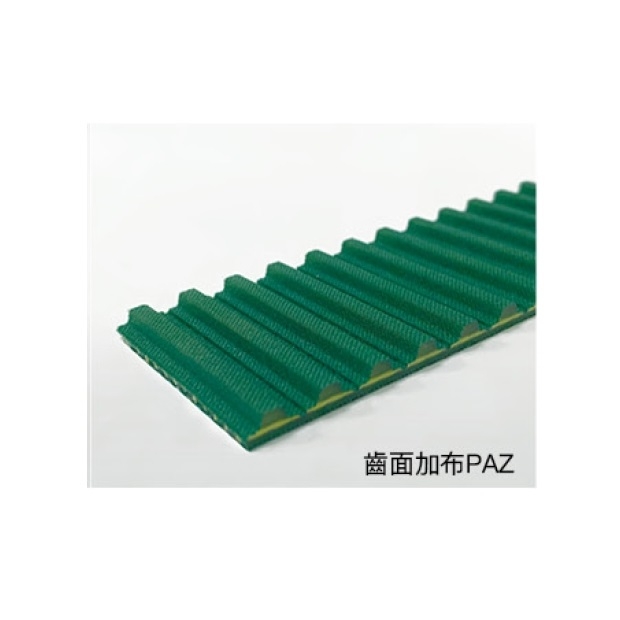

  • PU PAZ

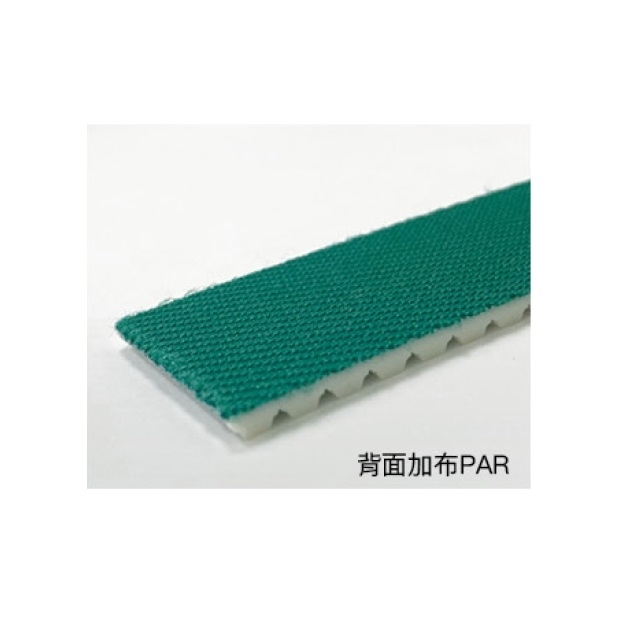

  • PU PAR
詳細介紹
BELT CHARACTERISTICS

- Polyurethane timing belt with tooth profile according to UNI/ISO 5296 with steel tension cords

- Allow to use small diameter pulley

- Mainly used in applications where inch pitch is an advantage (USA / UK)

- L & H profile double sided tooth construction available

- MXL is Trasparent (natural) PU colour

透過手機觀看，請左右滑動觀看
STANDARD

TOOTH
PROFILE		 TOOTH
ANGLE		 WIDTH
TOLERANCE
[mm]		 LENGTH
TOLERANCE
[mm/m]		 THICKNESS
TOLERANCE
[mm]
MXL 50° ±0.5 ±0.8 ±0.1
XL 50° ±0.5 ±0.5 ±0.2
L 40° ±0.5 ±0.5 ±0.2
H 40° ±0.5 ±0.5 ±0.2
XH 40° ±1.0 ±0.5 ±0.4

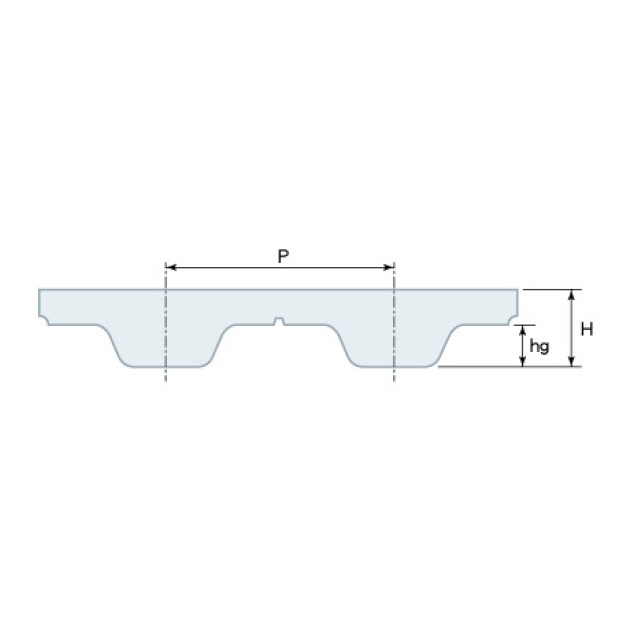

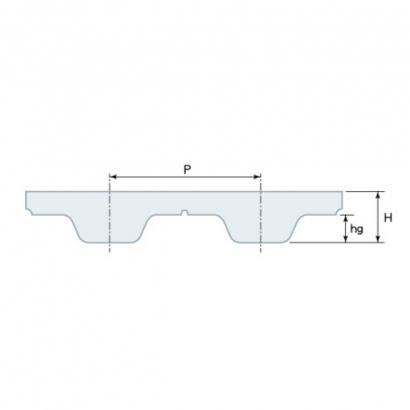

SPECIFICATION

型號
TYPE		 節距
P		 齒高
hg		 總厚
H
MXL 2.032
(2/25")		 0.50 1.6
XL 5.08
(1/5")		 1.27 2.3
L 9.525
(3/8")		 1.90 3.6
H 12.7
(1/2")		 2.30 4.3
XH 22.225
(7/8")		 6.35 11.2
芯線：STEEL標準,高性能HP,高柔性HF（另可提供ARAMID芳綸芯,不銹鋼芯來滿足客戶需求）＊視實際製造標準為主＊
